CNC Horizontal Boring & Milling Machine

HOME > Products > CNC Horizontal Boring & Milling Machine

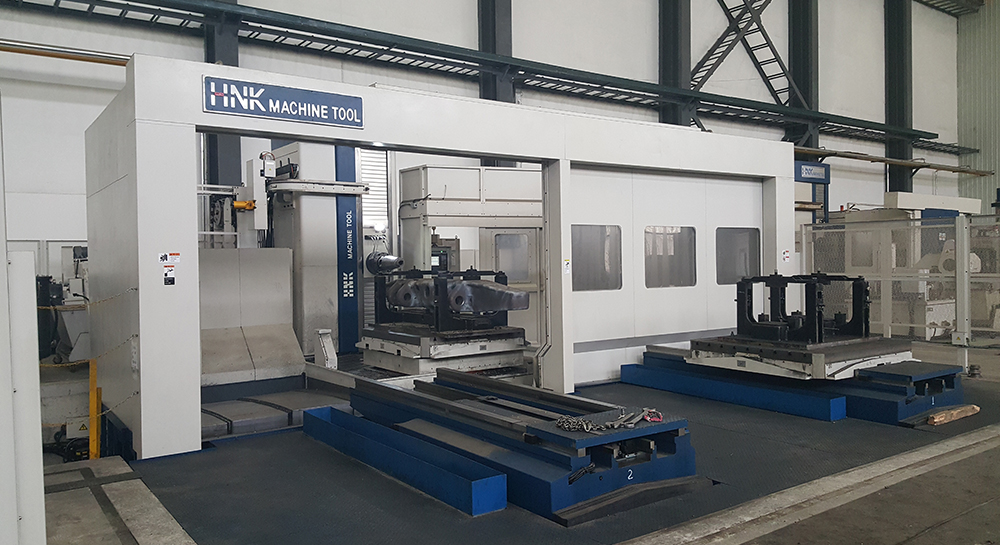

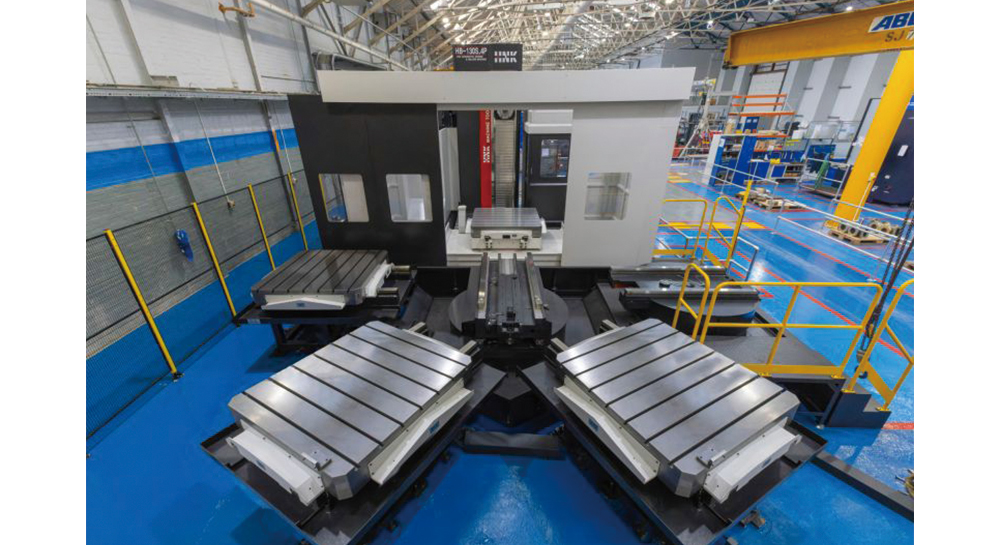

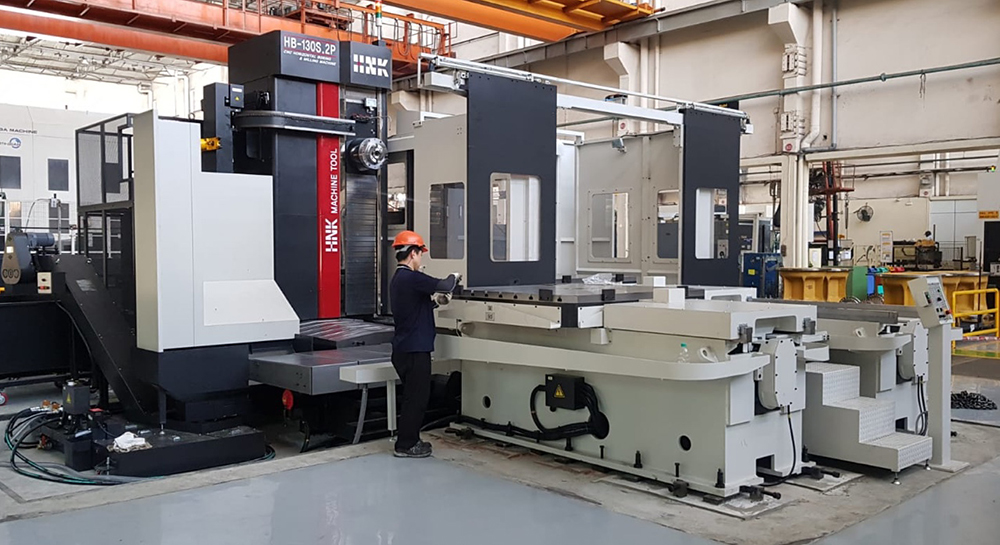

HB Series
CNC Horizontal Boring & Milling Machine

Product Features

Multi-functional and highly precise and efficient machine with long-nose spindle and wide table invented for the machining of large parts

Specifications

Drag the mouse from side to side.

X-Axis Travel(Table longitudinal)

Y-Axis Travel(Spindle vertical)

Z-Axis Travel(Column cross)

W-Axis Travel(Spindle axial)

Table Size

Rotary Table Size

Table Indexing
(every 90° indexing by locate pin)

Table Type

Max. Load on Rotary Table

Table Rotation Speed*

Spindle Diameter

Spindle Speed*

Spindle Taper

Spindle motor (cont. / 30min)

CNC Control System

HB-110M	HB-110	HB-130S	HB-130	HB-130X	HB-130C	HB-130CX	HB-150
1,600mm	1,600{2,000}mm	2,000 {3,000}mm	3,000mm	3,000mm	3,000mm	4,000mm	3,000~7,000mm
1,300mm	1,500mm	1,500 {2,000}mm	2,000 {2,300}mm	2,000 {2,300}mm	2,000 {2,300}mm	2,300mm	2,300~4,000mm
1,000mm	1,200{1,500]mm	1,300 {1,600}mm	1,300 {1,600}mm	1,300{1,600}mm	1,300 {1,600}mm	1,300 {1,600}mm	1,600~2,500mm
350mm	500 {650]mm	700mm	700mm	700mm	700mm	700mm	700~1,000mm
1,000 x 1,100mm	1,150 x 1,250mm	1,400 x 1,600mm	1,600 x 1,800mm	2,000 x 2,200mm	1,400 x 3,000mm	1,600 x 4,000mm	2,000 x 2,200 {2,500 x 3,000}mm
-	-	-	-	-	1,400 x 1,400mm	1,600 x 1,600mm	-
0.001°	0.001°	0.001°	0.001°	0.001°	0.001°	0.001°	0.001°
Rotary	Rotary	Rotary	Rotary	Rotary	Rotary + Sub table	Rotary + Sub table	Rotary
3,000kg	5,000{6,000}kg	7,000{9,000}kg	12,000{15,000}kg	15,000{20,000}kg	7,000{9,000}kg	10,000{15,000}kg	15,000~35,000kg
3rpm	2rpm	2rpm	1.4rpm	1rpm	1.4rpm	1.4rpm	1rpm
Ø110mm	Ø110mm	Ø130mm	Ø130mm	Ø130mm	Ø130mm	Ø130mm	Ø150mm
5 ~ 3,000rpm	5 ~ 3,000rpm	5 ~ 2,500rpm	5 ~ 2,500rpm	5 ~ 2,500rpm	5 ~ 2,500rpm	5 ~ 2,500rpm	5 ~ 2,000rpm
ISO 50	ISO 50	ISO 50	ISO 50	ISO 50	ISO 50	ISO 50	ISO 50
15/18.5{20/25}kW	18.5/22{25/30}kW	22/26{30/35}kW	22/26{30/35}kW	22/26{30/35}kW	22/26{30/35}kW	22/26{30/35}kW	37/45{50/60}kW
Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D

※ The items with star mark(*) can be changed according to the customers’ requirements
