CNC Vertical Turnung Lathe

HOME > Products > CNC Vertical Turnung Lathe

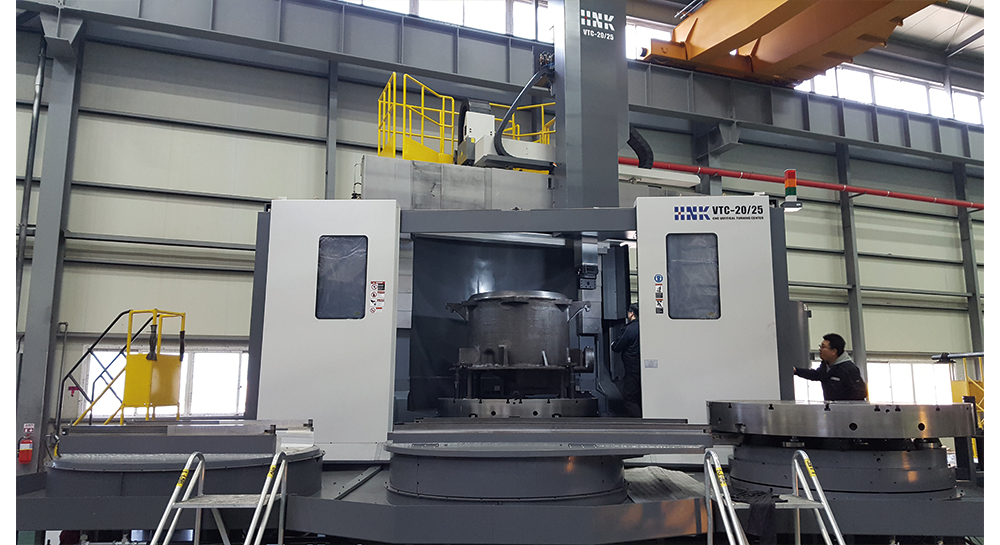

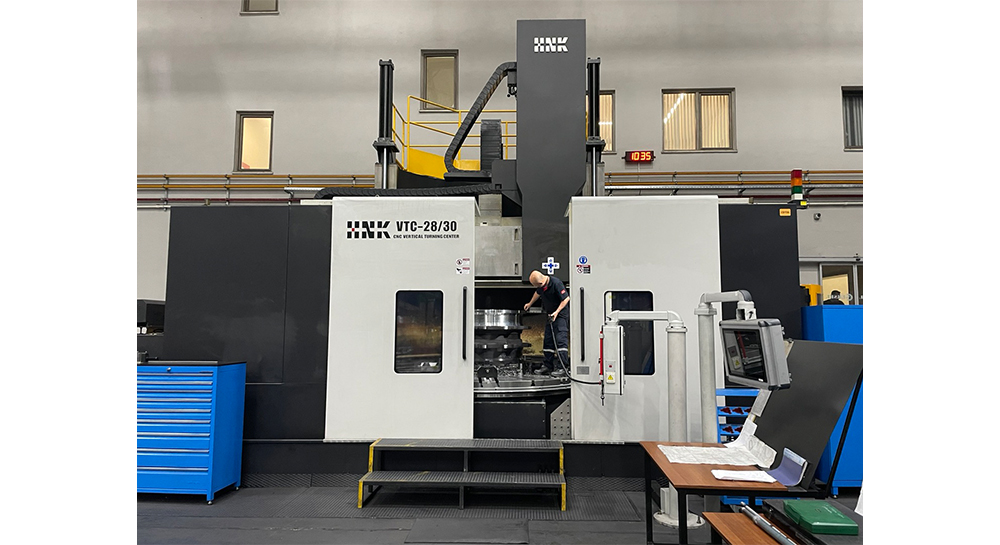

VTC Series

CNC vertical turning center

Product Features

Thanks to an indexing table and a live spindle, this model can do milling, tapping and other various machining jobs.
The machine can complete its machining process after a single setup, which can save your time and cost

Specifications

Drag the mouse from side to side.


Table Diameter
Max. Swing / Cutting diameter
Max. Turning Height*
Table Speed for Turning (2Steps)*
Max. Load on Table
Table Speed for Indexing (C-axis)
C-axis indexing
Main Motor for Table Drive
(cont/30min)
Horizontal Travel of Ram Head
(X-axis)
Vertical Travel of Ram Head (Z-axis)*
Milling Spindle Speed
Motor for Milling Spindle
(cont/30min)
Milling Spindle Taper
Ram Size
Tool Shank Size
Vertical Travel of Cross Rail
Control System
VTC-10/12F VTC-12/16F VTC-12/16R VTC-12/16 VTC-16/20F VTC-16/20R VTC-16/20 VTC-20/25 VTC-25/30 VTC-30/40 VTC-40/50 VTC-50/60 VTC-60/70 VTC-80/100 VTC-100/160
1,000mm 1,250mm 1,200mm 1,250mm 1,600mm 1,600mm 1,600mm 2,000mm 2,500mm 3,000mm 4,000mm 5,000mm 6,000mm 8,000mm 10,000mm
1,250mm 1,600mm 1,600mm 1,600mm 2,000mm 2,000mm 2,000mm 2,500mm 3,000mm 4,000mm 5,000mm 6,000mm 7,000mm 10,000mm 16,000mm
800mm 900mm 1,200mm 1,300mm 900mm 1,600mm 1,660mm 1,800mm 2,000mm 2,200mm 2,500mm 3,000mm 3,500mm 6,000mm 6,000mm
Max. ~450rpm Max. ~360rpm Max. ~340rpm Max. ~360rpm Max. ~250rpm Max. ~250rpm Max.~250rpm Max. ~200rpm Max. ~130rpm Max. ~100rpm Max. ~50rpm Max. ~50rpm Max. ~40rpm Max. ~20rpm Max. ~15rpm
4,500kg 8,000kg 7,000kg 8,000kg 10,000kg 8,000kg 10,000kg 12,000kg 20,000kg 30,000kg 50,000kg 60,000kg 150,000kg 350,000kg 450,000kg
0 ~ 3rpm 0 ~ 3rpm 0 ~ 3rpm 0 ~ 3rpm 0~2.5rpm 0 ~ 3rpm 0~2.5rpm 0 ~ 2rpm 0 ~ 1rpm 0 ~ 0.5rpm 0~0.3rpm 0 ~ 0.3rpm 0 ~ 0.3rpm 0 ~ 0.3rpm 0 ~ 0.3rpm
0.001˚ 0.001˚ 0.001˚ 0.001˚ 0.001˚ 0.001˚ 0.001˚ 0.001˚ 0.001˚ 0.001˚ 0.001˚ 0.001˚ 0.001˚ 0.001˚ 0.001˚

A.C 30/37kW

 A.C 37/45kW A.C 30/37kW A.C 37/45kW A.C 37/45kW A.C 37/45kW A.C 37/45kW A.C 45/55kW A.C 45/55kW A.C 60/75kW A.C 100kW A.C 155kW A.C 190kW D.C 265kW D.C 265kW

-200~+795mm

 -200~+970mm -100~+970mm -200~+970mm -200 ~ +1,170mm -100~+1,170mm -200 ~ +1,170mm -200 ~ +1,450mm -200 ~ +1,700mm -200 ~ +2,225mm -200 ~ +2,750mm -200 ~ +3,300mm -200 ~ +3,800mm -300 ~ +5,350mm -300 ~ +8,350mm
750mm 900mm 900mm 900mm 900mm 900mm 900mm 1,000mm 1,200mm 1,300/1,500/2,000/ 2,200/2,500mm 1,300/1,500/2,000/ 2,200/2,500mm 1,300/1,500/2,000/ 2,200/2,500mm 2,200/2,500/ 3,000/3,500mm 2,200/2,500/ 3,000/3,500mm 2,200/2,500/ 3,000/3,500mm
Max.~2,500rpm Max.~2,500rpm Max.~2,000rpm Max.~2,500rpm Max.~2,500rpm Max.~2,000rpm Max.~2,500rpm Max.~2,500rpm Max.~2,500rpm Max.~2,000rpm Max.~2,000rpm Max.~2,000rpm Max.~1,500rpm Max.~1,500rpm Max.~1,500rpm

A.C 11/15kW

 A.C 15/18.5kW A.C 15/18.5kW A.C 15/18.5kW A.C 15/18.5kW A.C 15/18.5kW A.C 15/18.5kW A.C 18.5/22kW A.C 18.5/22kW A.C 22/26kW A.C 22/26kW A.C 22/26kW A.C 37/45kW A.C 45/55kW A.C 45/55kW
ISO 50 ISO 50 ISO 50 ISO 50 ISO 50 ISO 50 ISO 50 ISO 50 ISO 50 ISO 50 ISO 50 ISO 50 ISO 50 ISO 50 ISO 50
240x240mm 240x240mm 240x240mm 240x240mm 240x240mm 240x240mm 240x240mm 240x240mm 240x240mm 300x300/350x350/ 400x400mm 300x300/350x350/ 400x400mm 300x300/350x350/ 400x400mm 400x400/500x500/ 600x600mm 400x400/500x500/ 600x600mm 400x400/500x500/ 600x600mm
40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 60 x 60mm 60 x 60mm 60 x 60mm 60 x 60mm
fixed type fixed type 300mm x 2steps 250mm x 3 steps fixed type 250mm x 3steps 250mm x 3 steps 250mm x 3 steps 250mm x 4 steps 250mm x 6 steps 250mm x 7 steps 250mm x 7 steps 250 x 9 steps 500mm x 9 steps 500mm x 9 steps
Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 0i-T {Fanuc 31i} Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 0i-T {Fanuc 31i} Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D

※ The items with star mark(*) can be changed according to the customers’ requirements
