CNC Vertical Turnung Lathe

HOME > Products > CNC Vertical Turnung Lathe

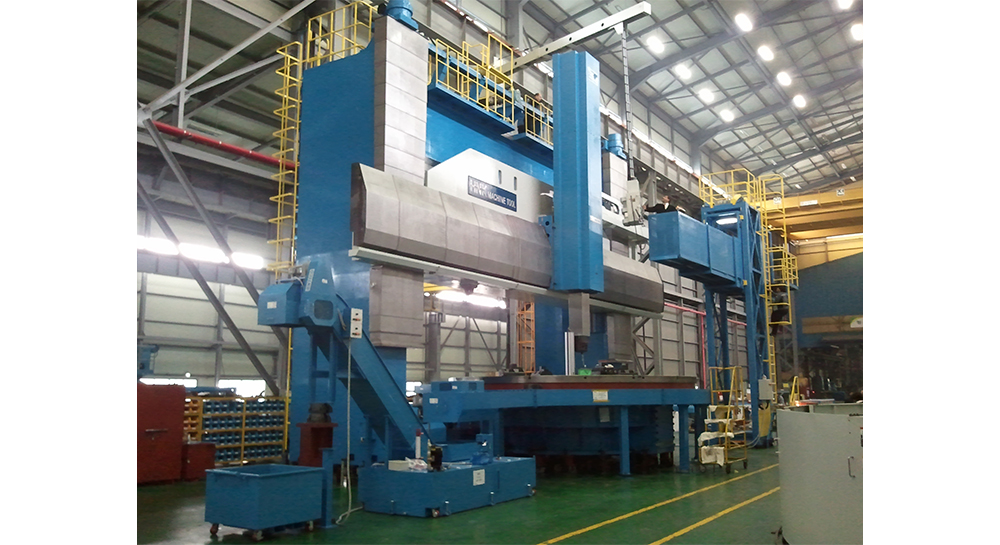

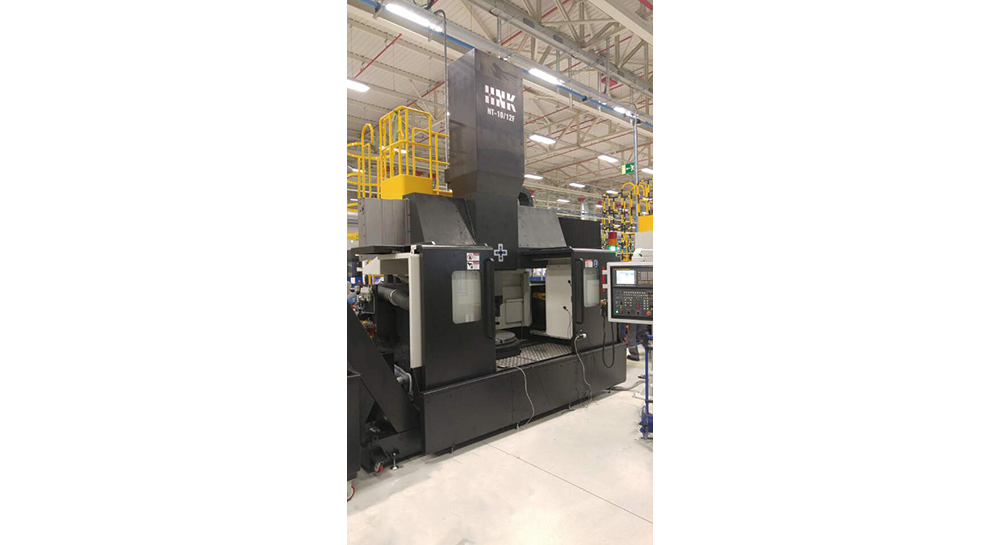

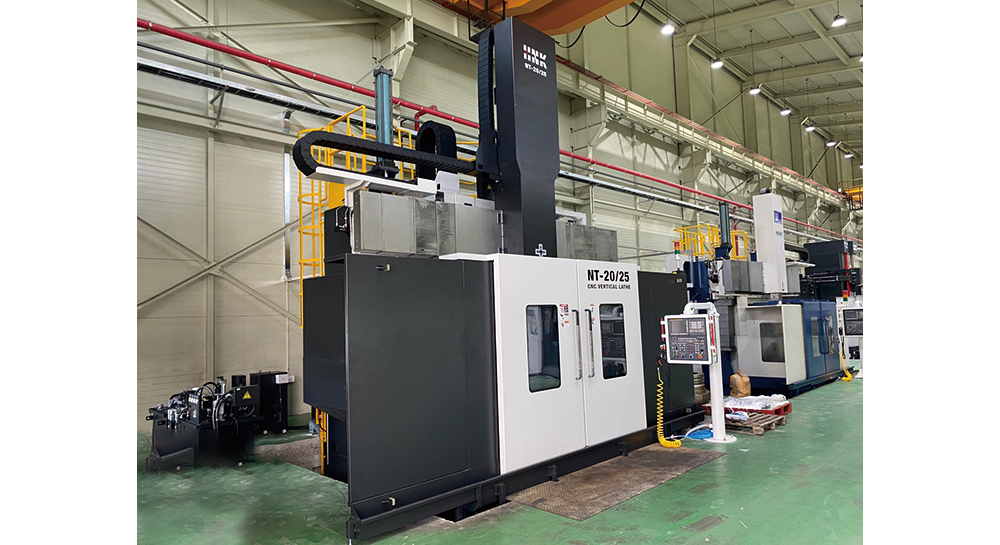

NT Series

CNC vertical turning lathe.

Product Features

This model guarantees high rigidity, high speed operation and high accuracy due to the improved machine features
such as rigid body construction and the latest control system.

Specifications

Drag the mouse from side to side.


Table Diameter
Max. Swing / Cutting diameter
Max. Turning Height*
Table Speed for Turning (2Steps)*
Max. Load on Table
Main Motor for Table Drive
(cont/30min)
Horizontal Travel of Ram Head
(X-axis)
Vertical Travel of Ram Head (Z-axis)*
Ram Size
Tool Shank Size
Vertical Travel of Cross Rail
CNC Control System
NT-10/12F NT-12/16F NT-12/16 NT-16/20F NT-16/20 NT-20/25 NT-25/30 NT-30/40 NT-40/50 NT-50/60 NT-60/70 NT-80/100 NT-100/160
1,000mm 1,250mm 1,250mm 1,600mm 1,600mm 2,000mm 2,500mm 3,000mm 4,000mm 5,000mm 6,000mm 8,000mm 10,000mm
1,250mm 1,600mm 1,600mm 2,000mm 2,000mm 2,500mm 3,000mm 4,000mm 5,000mm 6,000mm 7,000mm 10,000mm 16,000mm
800mm 900mm 1,300mm 900mm 1,660mm 1,800mm 2,000mm 2,200mm 2,500mm 3,000mm 3,500mm 6,000mm 6,000mm
Max. ~450rpm Max. ~360rpm Max. ~360rpm Max. ~250rpm Max.~250rpm Max. ~200rpm Max. ~130rpm Max. ~100rpm Max. ~50rpm Max. ~50rpm Max. ~40rpm Max. ~20rpm Max. ~15rpm
4,500kg 8,000kg 8,000kg 10,000kg 10,000kg 12,000kg 20,000kg 30,000kg 50,000kg 60,000kg 150,000kg 350,000kg 450,000kg

A.C 30/37kW

 A.C 37/45kW A.C 37/45kW A.C 37/45kW A.C 37/45kW A.C 45/55kW A.C 45/55kW A.C 60/75kW A.C 100kW A.C 155kW A.C 190kW D.C 265kW D.C 265kW

-200~+795mm

 -200~+970mm -200~+970mm -200 ~ +1,170mm -200 ~ +1,170mm -200 ~ +1,450mm -200 ~ +1,700mm -200 ~ +2,225mm -200 ~ +2,750mm -200 ~ +3,300mm -200 ~ +3,800mm -300 ~ +5,350mm -300 ~ +8,350mm
750mm 900mm 900mm 900mm 900mm 1,000mm 1,200mm 1,300/1,500/2,000/ 2,200/2,500mm 1,300/1,500/2,000/ 2,200/2,500mm 1,300/1,500/2,000/ 2,200/2,500mm 2,200/2,500/ 3,000/3,500mm 2,200/2,500/ 3,000/3,500mm 2,200/2,500/ 3,000/3,500mm
200x200mm 200x200mm 200x200mm 200x200mm 200x200mm 240x240mm 240x240mm 300x300/350x350/ 400x400mm 300x300/350x350/ 400x400mm 300x300/350x350/ 400x400mm 400x400/500x500/ 600x600mm 400x400/500x500/ 600x600mm 400x400/500x500/ 600x600mm
40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 40 x 40mm 60 x 60mm 60 x 60mm 60 x 60mm 60 x 60mm
fixed type fixed type 250mm x 3 steps fixed type 250mm x 3 steps 250mm x 3 steps 250mm x 4 steps 250mm x 6 steps 250mm x 7 steps 250mm x 7 steps 250mm x 9 steps 500mm x 9 steps 500mm x 9 steps
Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D

※ The items with star mark(*) can be changed according to the customers’ requirements
