CNC Double Column Machining center

HOME > Products > CNC Double Column Machining center

HPM-M Series

Five-face precision machining system

Product Features

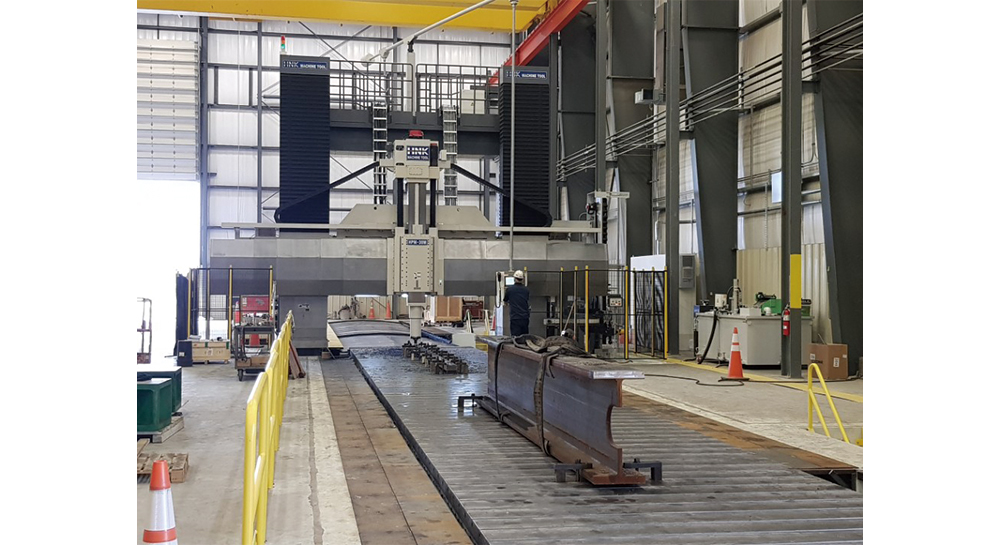

HPM-M series, Double Column Machining Center, is designed for precision and heavy-duty machining of wide range of workpieces.
With its rigid body construction, HPM-M series offers unparalleled machine longevity and machining productivity.

Specifications

Drag the mouse from side to side.


Effective distance between columns*
Distance between table surface
and spindle end
Table travel (X-axis)
Spindle Head Travel (Y-axis)
 Ram travel (Z-Axis)
Crossrail travel (W-axis)
Table size, Width x Length
Max. allowable weight on table*
Spindle taper
Spindle diameter
Ram size
Speed*
Motor Power (cont. / 30min)*
Control system
HPM-15M (15x30) HPM-15M (15x40) HPM-20M (20x40) HPM-20M (20x60) HPM-25M (25x50) HPM-25M (25x60) HPM-30M (30x60) HPM-30M (30x80) HPM-35M (35x60) HPM-35M (35x80) HPM-40M (40x80) HPM-40M (40x100)
2,200mm 2,200mm 2,700mm 2,700mm 3,200mm 3,200mm 4,000mm 4,000mm 4,500mm 4,500mm 5,000mm 5,000mm
1,500
(1,800}mm		 1,500
(1,800}mm		 1,850
(2,350}mm		 1,850
(2,350}mm		 2,350
(2,850}mm		 2,350
(2,850}mm		 3,250
(3,550}mm		 3,250
(3,550}mm		 3,500
(3,850}mm		 3,500
(3,850}mm		 3,500
(3,850}mm		 3,500
(3,850}mm
3,250mm 4,250mm 4,250mm 6,250mm 5,250mm 6,250mm 6,250mm 8,250mm 6,250mm 8,250mm 8,250mm 10,250mm
3,200mm 3,200mm 3,700mm 3,700mm 4,200mm 4,200mm 5,000mm 5,000mm 5,500mm 5,500mm 6,000mm 6,000mm
800mm 800mm 800mm 800mm 800mm 800mm 1,000{1,200}mm 1,000{1,200}mm 1,000{1,200}mm 1,000{1,200}mm 1,000{1,200}mm 1,000{1,200}mm
1,000mm 1,000mm 1,500mm 1,500mm 2,000mm 2,000mm 2,500mm 2,500mm 2,800mm 2,800mm 2,800mm 2,800mm
1,500 x 3,000mm 1,500 x 4,000mm 2,000 x 4,000mm 2,000 x 6,000mm 2,500 x 5,000mm 2,500 x 6,000mm 3,000 x 6,000mm 3,000 x 8,000mm 3,500 x 6,000mm 3,500 x 8,000mm 4,000 x 8,000mm 4,000 x 10,000mm
15,000kg 15,000kg 20,000kg 20,000kg 30,000kg 30,000kg 40,000kg 40,000kg 50,000kg 50,000kg 60,000kg 60,000kg
ISO No.50 ISO No.50 ISO No.50 ISO No.50 ISO No.50 ISO No.50 ISO No.50 ISO No.50 ISO No.50 ISO No.50 ISO No.50 ISO No.50
Ø130mm Ø130mm Ø130mm Ø130mm Ø130mm Ø130mm Ø130mm Ø130mm Ø130mm Ø130mm Ø130mm Ø130mm
380x380mm 380x380mm 380x380mm 380x380mm 380x380mm 380x380mm 400x 400mm 400x 400mm 400x 400mm 400x 400mm 400x 400mm 400x 400mm
3,000(4,000}rpm 3,000(4,000}rpm 3,000(4,000}rpm 3,000(4,000}rpm 3,000(4,000}rpm 3,000(4,000}rpm 3,000(4,000}rpm 3,000(4,000}rpm 3,000(4,000}rpm 3,000(4,000}rpm 3,000(4,000}rpm 3,000(4,000}rpm
22/26, 30/37, 37/45 kW 22/26, 30/37, 37/45 kW 22/26, 30/37, 37/45 kW 22/26, 30/37, 37/45 kW 22/26, 30/37, 37/45 kW 22/26, 30/37, 37/45 kW 22/26, 30/37, 37/45 kW 22/26, 30/37, 37/45 kW 22/26, 30/37, 37/45 kW 22/26, 30/37, 37/45 kW 22/26, 30/37, 37/45 kW 22/26, 30/37, 37/45 kW
Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D

※ The items with star mark(*) can be changed according to the customers’ requirements
