HPM-L Series

CNC Large-sized double column machining Center

Product Features

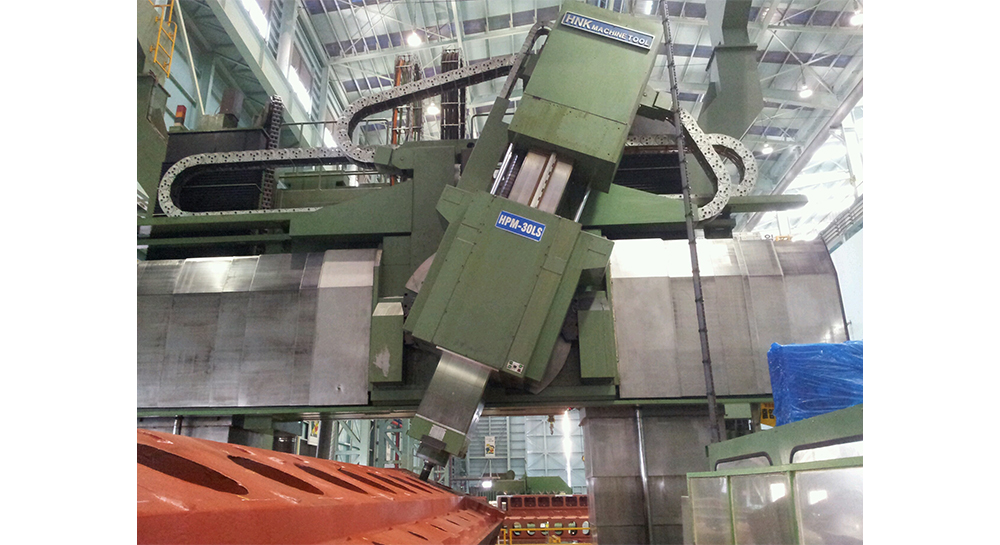

HPM-series, CNC Large-sized Double Column Machning Center, offers wide range of machining capability and heavy duty machining jobs.
Equipped with various optional attachments, HPM-series is capable of diverse job applications at one set-up.
Above all, its heavy duty structure is most suitable for the large-sized component cutting related to ship engines, power generators and steel mill facilities.

Specifications

Drag the mouse from side to side.


Effective distance
between columns*
Distance between table surface
and spindle end
Table travel (X-axis)
Spindle Head Travel (Y-axis)
Ram travel (Z-Axis)
Crossrail travel (W-axis)
Table size, Width x Length
Max. allowable weight on table*
Spindle taper
Spindle diameter
Ram size
Speed*
Motor Power (cont. / 30min.)*
CNC Control system
HPM-30L (30x80) HPM-30L (30x100) HPM-40L (40x100) HPM-40L (40x120) HPM-45L (45x100) HPM-45L (45x120) HPM-50L (50x170) HPM-50L (50x200) HPM-60L (60x240) HPM-60L (60x300)

3,850mm

 3,850mm 4,850mm 4,850mm 5,000mm 5,000mm 5,600mm 5,600mm 7,500mm 7,500mm
3,000
{3,500}mm		 3,000
{3,500}mm		 4,000
{4,500}mm		 4,000
{4,500}mm		 5,000
{5,500}mm		 5,000
{5,500}mm		 6,200mm
 6,200mm
 7,800mm 7,800mm
8,250mm 10,250mm 10,250mm 12,000mm 10,250mm 12,000mm 17,000mm 20,000mm 24,000mm 30,000mm
4,850mm 4,850mm 5,850mm 5,850mm 6,000mm 6,000mm 6,600mm 6,600mm 8,500mm 8,500mm
1,000{1,200}mm 1,000{1,200}mm 2,000{2,200}mm 2,000{2,200}mm 2,000{2,200}mm 2,000{2,200}mm 2,200{2,500}mm 2,200{2,500}mm 3,000{3,500}mm 3,000{3,500}mm
2,500mm 2,500mm 2,800mm 2,800mm 3,100mm 3,100mm 4,000mm 4,000mm 4,300mm 4,300mm
3,000 x 8,000mm 3,000 x 10,000mm 4,000 x 10,000mm 4,000 x 12,000mm 4,500 x 10,000mm 4,500 x 12,000mm 5,000 x 17,000mm 5,000 x 20,000mm 6,000 x 24,000mm 6,000 x 30,000mm
50,000kg 50,000kg 80,000kg 80,000kg 120,000kg 120,000kg 170,000kg 170,000kg 300,000kg 400,000kg
ISO No.50 ISO No.50 ISO No.60{50} ISO No.60{50} ISO No.60{50} ISO No.60{50} ISO No.60{50} ISO No.60{50} ISO No.60{50} ISO No.60{50}
Ø130mm Ø130mm Ø160mm Ø160mm Ø160mm Ø160mm Ø190mm Ø190mm Ø190mm Ø190mm
500x500mm 500x500mm 500x500mm 500x500mm 500x500mm 500x500mm 600x600mm 600x600mm 650 x 650mm 650 x 650mm
2,000rpm 2,000rpm 1,000{1,200}rpm 1,000{1,200}rpm 1,000{1,200}rpm 1,000{1,200}rpm 1,000{1,200}rpm 1,000{1,200}rpm 1,000rpm 1,000rpm
45/55{60/75}kW 45/55{60/75}kW 60/75kW 60/75kW 60/75kW 60/75kW 100kW 100kW 100kW 100kW
Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D Fanuc 31i-B, Siemens 840D

※ The items with star mark(*) can be changed according to the customers’ requirements
